Specifications for

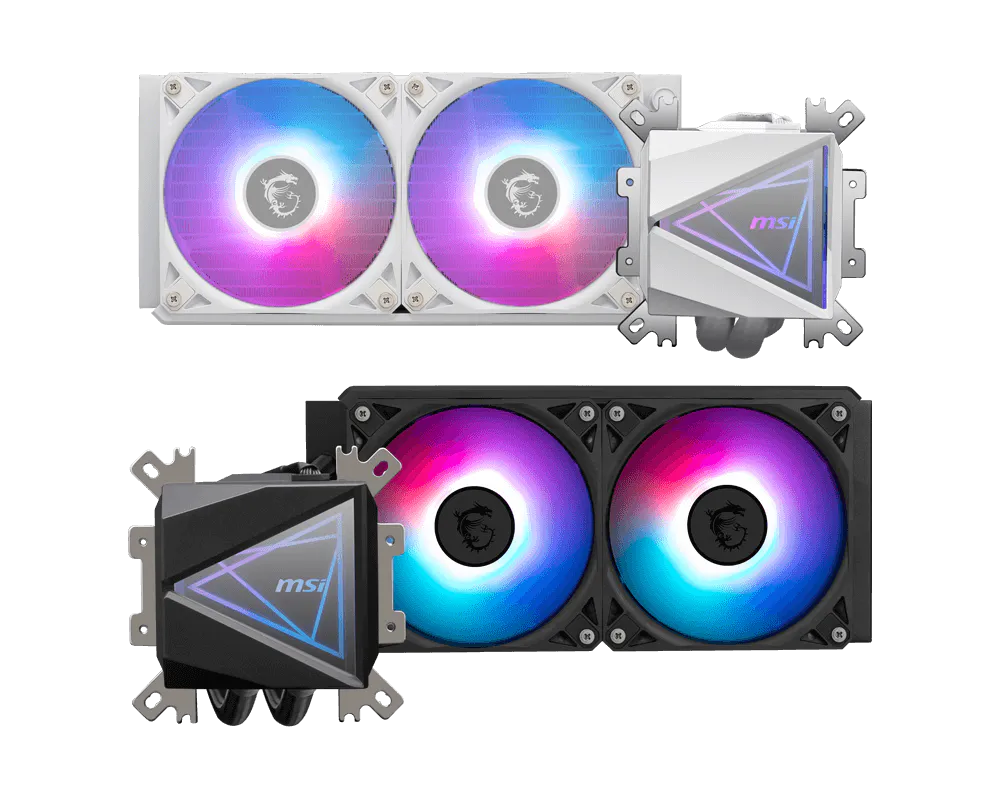

MAG CORELIQUID I240 / WHITE
Number of Fans
Number of Fans
2
Fan Dimensions
Fan Dimensions
120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Rated Current
Fan Rated Current
0.2A (MAX:0.3A)
Fan Life Expectancy
Fan Life Expectancy
30,000 hrs@40℃
Water Cooling Tube Material
Water Cooling Tube Material
EPDM
Fan Bearing
Fan Bearing
Loop Dynamic Bearing(LDB)
Fan Air Flow
Fan Air Flow
70.7 CFM
Fan Lighting
Fan Lighting
ARGB GEN2
PWM Mode
PWM Mode
Yes
Fan Cable Length (5V ARGB / PWM cable)
Fan Cable Length (5V ARGB / PWM cable)
550 / 500 mm; 21.65 / 19.69 inches
Radiator Material
Radiator Material
Aluminum
Radiator Dimensions
Radiator Dimensions
277 x 119.2 x 27mm / 10.91 x 4.69 x 1.06 inches
Fan Power Consumption
Fan Power Consumption
2.4W (MAX:3.6W)
Block Dimensions
Block Dimensions
69.1 x 74 x 62.45 mm
Block Lighting
Block Lighting
ARGB GEN2
Fan Connector
Fan Connector
5V ARGB 3-PIN Header
PWM 4-PIN Header
PWM 4-PIN Header
Pump Life Expectancy
Pump Life Expectancy
50,000 hours in typical use
Pump Noise Level
Pump Noise Level
20 dBA (avg.)
Pump Speed
Pump Speed
3400 RPM ± 10%
Pump Rated Current
Pump Rated Current
0.32A (Max: 0.5A)
Pump Power Consumption
Pump Power Consumption
3.84W (Max: 6W)
Pump Connector
Pump Connector
PWM 4-PIN Header
5V ARGB 3-PIN Header ( Female )
5V ARGB 3-PIN Header ( male )
5V ARGB 3-PIN Header ( Female )
5V ARGB 3-PIN Header ( male )
Intel Socket
Intel Socket
LGA 1150/1151/1155/1156/1200/1700 + Next gen
AMD Socket
AMD Socket
AM5 / AM4
Accessories
Accessories
Thermal paste x 1
Cold Plate Material
Cold Plate Material
Copper
Radiator Size
Radiator Size
240 mm
