Specifications for

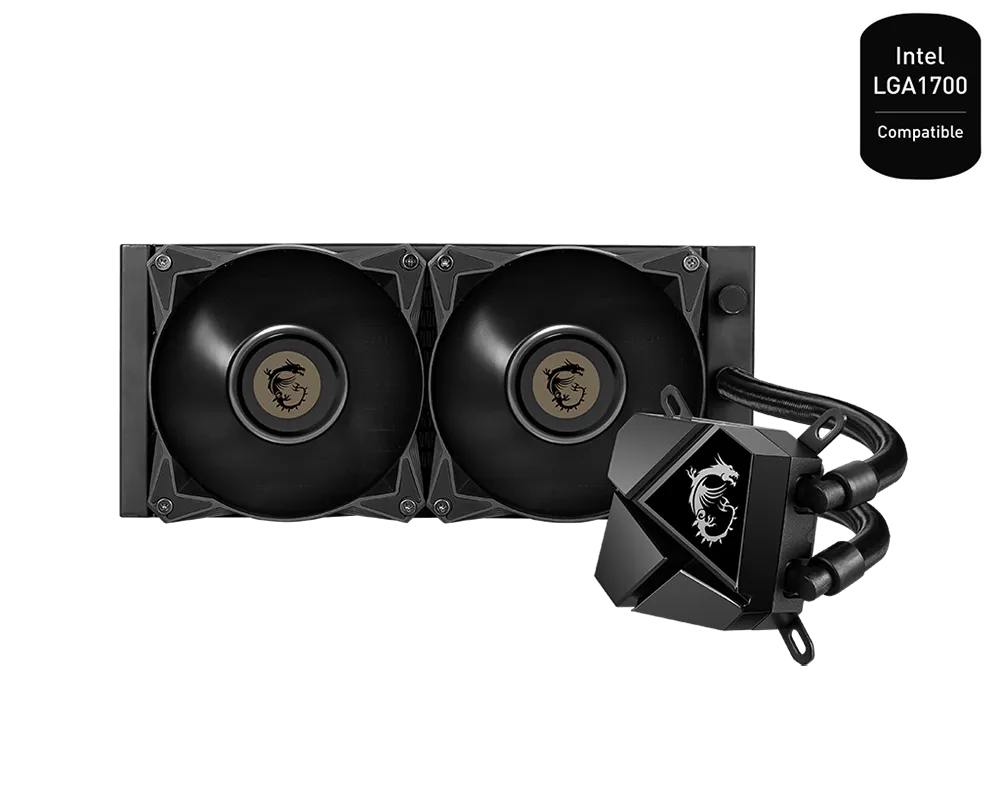

MAG CORELIQUID P240
Accessories
Accessories
1 to 2 Fan PWM cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
AMD Socket
AMD Socket
AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Intel Socket
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 1366/2011/2011-3/2066
LGA 1366/2011/2011-3/2066
Pump Power Consumption
Pump Power Consumption
4.08W
Pump Speed
Pump Speed
4200±10%RPM
Pump Noise Level
Pump Noise Level
18 dBA
Pump Life Expectancy
Pump Life Expectancy
100,000 hours
Fan Power Consumption
Fan Power Consumption
1.8 W
Block Dimensions
Block Dimensions
70.5 x 70.5 x 52mm / 2.78 x 2.78 x 2.05 inches
Radiator Dimensions
Radiator Dimensions
276 x 120 x 27mm / 10.87 x 4.7 x 1.06 inches
Radiator Material
Radiator Material
Aluminum
PWM Mode
PWM Mode
Yes
Fan Air Flow
Fan Air Flow
78.73 CFM
Fan Noise Level
Fan Noise Level
14.3 ~ 34.3 dBA
Fan Bearing
Fan Bearing
Two Ball Bearing
Fan Life Expectancy
Fan Life Expectancy
70,000 hours
Fan Rated Voltage
Fan Rated Voltage
12V DC
Fan Rated Current
Fan Rated Current
0.15 A
Fan Speed
Fan Speed
500 ~ 2000 RPM
Fan Dimensions
Fan Dimensions
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Number of Fans
Number of Fans
2
